Sand Dryer Machine, also known as river sand dryer, yellow sand dryers, quartz sand dryer, is a kind of drying equipment to process large numbers of items, with reliable running, operating flexibility, adaptability, large capacity, etc.

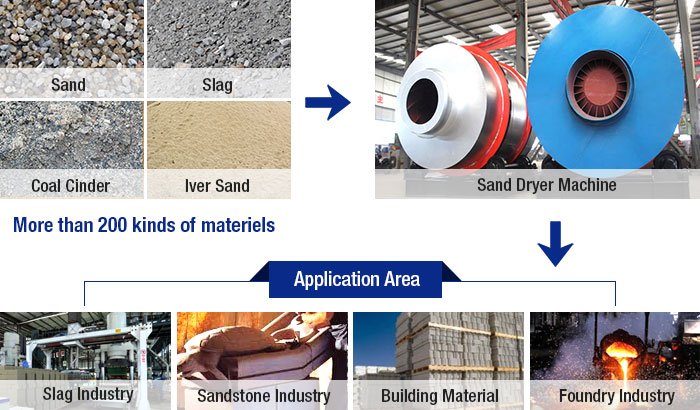

Sand Dryer Machine, also known as river sand dryer, yellow sand dryers, quartz sand dryer, is a kind of drying equipment to process large numbers of items, with reliable running, operating flexibility, adaptability, large capacity, etc. Sand drying machine is suitable for drying granular materials, especially sand, river sand, quartz sand,with excellent drying effect.

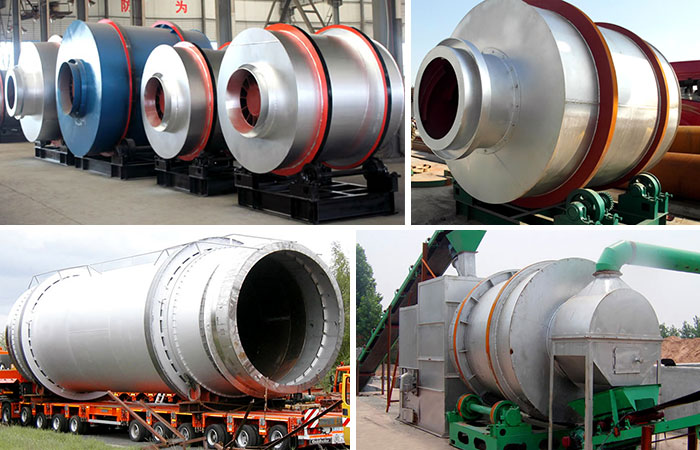

This river sand dryer machine is mainly composed of rotary part, lifting board, transmission part, supporting part and seal ring. The dryer machine produced by our company uses new lifting board with many functions of guiding, current sharing and material lifting, and the materials can be comprehensively distributed on the radial sections of the dryer machine and the material curtain is in the thin, average and full state and the materials can fully contact the hot air, thus achieving the aim of making full use of the heat.
Features of Sand Dryer Machine
1. Accessories of the sand dryer are wear resistant, with high thermal efficiency.
2. Sand dryer is applicable for white coal, bituminous coal, fuel, coal, oil, gas, etc.
3. Construction investment is low, and it¡¯s easy to be installed.
4. Sand dryer is with no leakage phenomenon, which can completely solve the sealing problems.
5. Discharge temperature is not higher than 60 degrees, directly feeding without cooling shed is OK.
Technology Data of Sand Dryer Machine
| Item/Unit/Model | Ø2.5*7m | Ø2.7*7m | Ø3.0*7.0m | Ø3.2*7.0m | Ø3.6*8m |
| Diameter of outer cylinder(m) | 2.5 | 2.7 | 3.0 | 3.2 | 3.6 |
| Length of outer cylinder(m) | 7 | 7 | 7.0 | 7.0 | 8 |
| Cylinder volume( m³ ) | 16.63 | 16.63 | 52.678 | 52.678 | 81.38 |
| Rotating speed of cylinder(rpm) | 4-10 | 4-10 | 4 -10 | 4 -10 | 4 -10 |
| Initial moisture of slag(%) | 10-12 | 10-12 | 10-12 | 10-12 | 10-12 |
| Final moisture of slag(%) | 1 | 1 | 1 | 1 | 1 |
| Initial moisture of yellow ground(%) | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 |
| Final moisture of yellow ground (%) | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 |
| Highest intake air temperature(oC) | 700-750oC | 700-750oC | 700-750oC | 700-750oC | 700-750oC |
| Production capacity(T/h) | Yellow sand25-30 Slag20-25 |
Yellow sand30-35 Slag25-30 |
Yellow sand35-40 Slag30-35 |
Yellow sand45-50 Slag35-40 |
Yellow sand65-70 Slag60-65 |
| Motor type | Y2-132m-4E | Y2-132m-4E | Y2-160m-4 | Y2-160m-4 | Y2-160m-4 |
| Motor power(kw) | 7.5*2 | 11*2 | 7.5*4 | 7.5*4 | 15*4 |
| Reducer type | XWD7-23-11W | XWD7-23-11W | XWD6-23-7.5KW | XWD6-23-7.5KW | XWD8-23-15KW |
| Velocity ratio of reducer | 29 | 29 | 29 | 29 | 29 |
Zhengzhou Lanyu Mechanical Equipment Co., Ltd. is a large-scale and professional manufacturer of mining machinery and general machinery, with two professional industrial workshops and more than 300 machine machining, welding and assembly equipment with large and medium size. Lanyu Mechanical has won wide praise at home and abroad by the exquisite techniques and advanced technology, and it's also become the large mining machinery export base in China.
