Sand Washing Machine is a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand washing machine can improve the quality of the sand.
Sand Washing Machine is a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand washing machine can improve the quality of the sand.

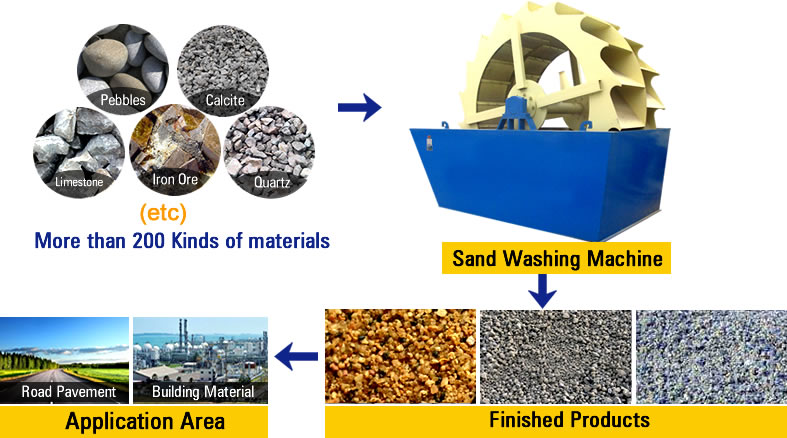

Application Area of Sand Washing Machine
Sand washing machine is used for desliming in construction sites, sand and mineral processing plants, hydroelectric plants, precast plants, ore dressing plant, etc., can also be used for ore separation operation.
Advantages are: reasonable structure, high efficiency, and little sand loss during washing; the most advantageous factor is that the transmission device isolates with sand and water, which greatly reduces the failure rate. It is the perfect equipment for domestic sand washer industry.
Features of Sand Washing Machine
1. Simple structure. The impeller transmission bearing device isolates water and materials to avoid the bearing damaged phenomenon resulted from soaking, sand and pollutants.
2. It has almost no damageable parts except the screen, simple maintenance, less wearing parts.
3. Reasonable structure, large processing quantity, high cleanliness.
4. Durable, which does not need to be maintained for a long period.
5. No pollution.
6. Less loss of fine sand and stone powder.
The Working Principle of Sand Washing Machine
Feed material is normally delivered between two to four feet from the feed end of the box and is subjected to an aggressive washing action resulting from the intermeshing paddle design. The paddles perform two functions: they help convey material and are the catalyst to material on material scrubbing. The clean material works uphill, between the shafts, and is discharged out the bottom of the box. Deleterious materials are absorbed into water and carried over a weir on either side of the box. The length of the washer box is dependent upon the percentage and tenacity of clay or the waste to remove.
Technical Data of Sand Washing Machine
Specification | XS2200 | XS2600 | XS2900 | XS3500 |
Wheel bucket diameter (mm) |
2200 | 2600 | 2900 | 3500 |
Rotation Speed (r/min) |
1-2 | 1-2 | 0.8-1.5 | 0.8-1.2 |
Processing capacity (t/h) | 15-30 | 20-50 | 50-100 | 120-200 |
Motor power (kw) |
8P 4 | 8P 5.5 | 8P 7.5 | 8P 11 |
Total weight (kg) |
4300 | 5600 | 8100 | 9900 |
Dimensions (L*W*H) (mm) |
3150*1910*2280 | 3520*2390*2690 | 3820*2640*3200 | 4420*2930*3800 |
