Vibrating Feeder

Vibrating Feeder

Brief

Vibrating Feeder made by our company is line vibrating feeder, the advantages are smooth vibration, reliable operation and long service life. It can realize continuous and even materials feeding for crushers in sandstone production line and make rough screening for materials.

Whatsapp : 008618103717058
We are here to help: Easy ways to get the answers you need.

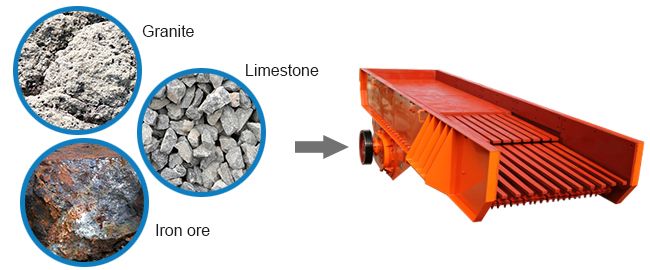

Vibrating Feeder made by our company is line vibrating feeder, the advantages are smooth vibration, reliable operation and long service life. It can realize continuous and even materials feeding for crushers in sandstone production line and make rough screening for materials. Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, ore dressing, building materials, chemicals, etc.

Main Features of Vibrating Feeder

1. Simple structure, even feeding, good continuous performance and adjustable exciting force.

2. The feeding can be changed and controlled anytime, and the vibrating feeder is easy to operate.

3. The eccentric block of the vibrating feeder is the exciting source which features little noise, low power consumption, good adjustment and no material clashing phenomenon.

The Structure and Working Process of Vibrating Feeder

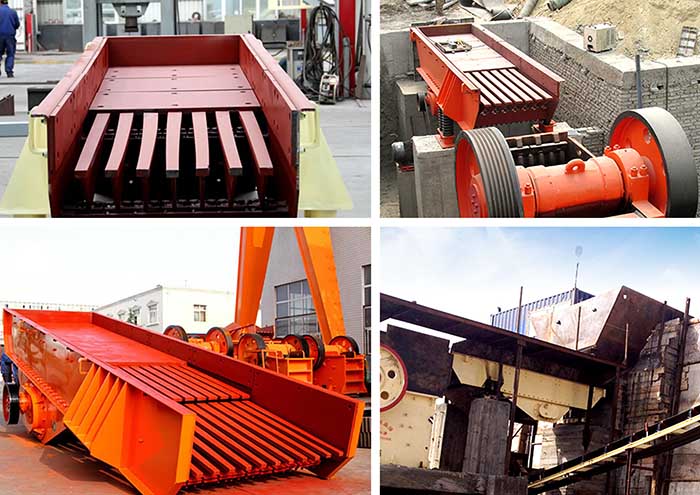

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. In installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through vibration, the materials will slip and sling on the funnel, moving forward; when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.

The Performance Characteristics of Vibrating Feeder

This series vibration feeding engine has many characteristics such as steady vibration, reliable operation, low noise, low energy consumption, long service life, convenient maintenance, light weight, small volume, easy equipment adjustment and good overall performance.

Technical Parameter of Vibrating Feeder

Model Max.
Feeding
Size
(mm)
Processing
 capacity
(t/h)
Motor
power
(kw)
Obliquity
of material
 trough
(o)
Total
 weight
(kg)
Trough
size
(mm)
Dimensions
(L*W*H)
(mm)
GZD-650*2300 300 80 1.1*2 10 2798 650*2300 2300*1360*780
GZD-750*2500 350 100 1.1*2 10 3260 750*2500 2500*1460*780
GZD-850*3000 400 120 3*2 10 3607 850*3000 3110*1800*1600
GZD-1000*3600 500 150 5.5*2 10 3895 1000*3600 3850*1950*1630
GZD-1100*4200 580 240 5.5*2 10 4170 1100*4200 4400*2050*1660
GZD-1300*4900 650 450 7.5*2 10 5200 1300*4900 5200*2350*1750
GZD-1500*5600 1050 450-800 11*2 10 7500 1500*5600 5700*2000*1750
ZSW-380*95 500 100-160 11 0 4823 3800*960 3920*1640*1320
ZSW-490*110 630 150-320 15 0 6647 4900*1100 4980*1830*1320
ZSW-490*130 750 400-600 22 0 8760 4900*1300 4980*2580*2083
ZSW-600*130 750 400-600 22 0 9250 6000*1300 6082*2580*2083
ZSW-600*150 800 500-700 30 0 10190 6000*1500 6086*2662*1912
ZSW-600*180 800 700-1000 37 0 13750 6000*1800 6310*3262*2230
