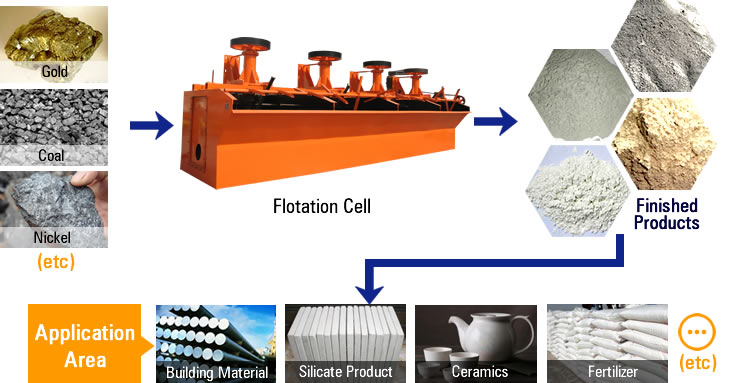

Flotation Machine (also called Flotation separator) is applicable for the separation of nonferrous metal and ferrous metal and nonmetal, such as fluorite and talc, Handling Materials: Quartz, gold, silver, copper and iron ore etc.
Flotation Machine (also called Flotation separator) is applicable for the separation of nonferrous metal and ferrous metal and nonmetal, such as fluorite and talc, Handling Materials: Quartz, gold, silver, copper and iron ore etc.

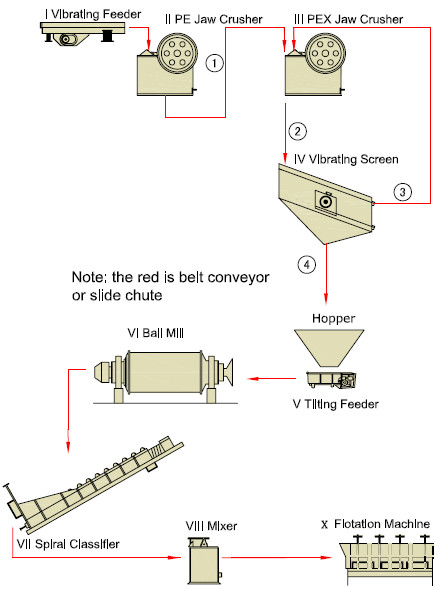

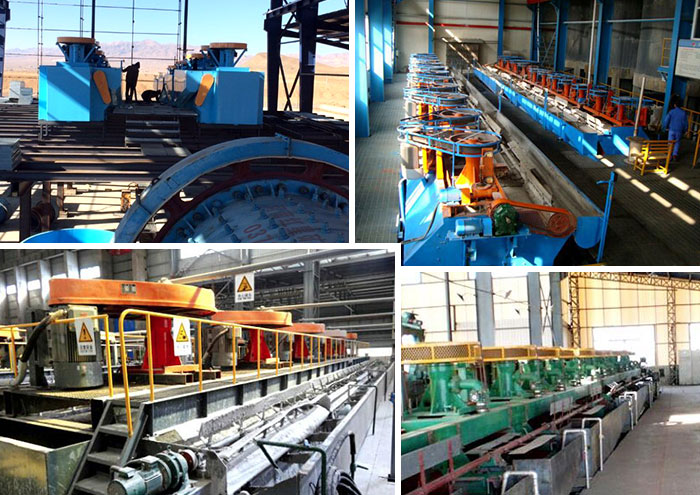

The flotation cell or flotation machine is main equipment in flotation plant applied not only to separate and grade non-ferrous metals like copper, zinc, lead, nickel and gold, but also to make rough and fine separation of the ferrous metals.
The flotation machine must ensure that the slurry can absorb enough amount of air (the external pressure of some flotation machines are pressed by the fan) and try to diffuse throughout the whole groove. Because the air is more uniform with fine dispersion, so that the particle and gas saturation opportunities can have more contact opportunities, and its flotation efficiency is also higher.
Features of Flotation Machine
1. Large inflation amount, low power consumption.
2. It has three functions of air suction, slurry suction and flotation. Self flotation circuit can work without any auxiliary equipment. Horizontal configuration is easy for process changes.
3. Automatic control device of pulp surface, convenient adjustment.
4. Reasonable pulp cycle can minimize sand sediments.
5. Low energy consumption, less wear, easy automatic control.
The Working Principle of Flotation Machine
When flotation machine works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low pressure air sent by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the remixing with air. The remaining slurry flows to the next trough until it becomes residue.
Zhengzhou Lanyu Mechanical has large numbers of flotation machines for sale, which has high quality, simple operation and complete models, such as copper ore flotation machine and gold flotation machine. We can provide onsite installation and flexible configuration according to different production situations for customers. Welcome to visit our company!
Technical Parameter of Flotation Machine
Category | Specification Model |
Effective cubage (m³) |
Processing capacity (m³/min) |
Main shaft loam board | Dimensions (L*W*H) (mm) |
Single trough Weight (kg) |
|||
Power (kw) |
Rotate speed (r/min) |
Rotate speed (r/min) |
Power (kw) |
||||||
XJK type flotation machine |
XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | 700*700*700 | 460 |
XJK-0.62 | 0.62 | 0.3-0.9 | 3.0 | 400 | 25 | 1.1 | 900*820*850 | 980 | |
XJK-1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1100*1100*1000 | 1390 | |
XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | 1750*1600*1100 | 2430 | |
XJK-5.8 | 5.8 | 5-7 | 22 | 240 | 25 | 1.5 | 2200*2200*1200 | 3533 | |
SF type flotation machine |
SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | 700*700*750 | 468 |
SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 900*820*950 | 990 | |
SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1100*1100*1100 | 1873 | |
SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1750*1600*1150 | 2538 | |
SF-4 | 4 | 2-4 | 15 | 220 | 25 | 1.5 | 1850*2050*1200 | 2838 | |
SF-8 | 8 | 4-8 | 30 | 191 | 25 | 1.5 | 2200*2900*1400 | 4129 | |
SF-10 | 10 | 5-10 | 30 | 191 | 25 | 1.5 | 2200*2900*1700 | 4486 | |
SF-20 | 20 | 5-20 | 30*2 | 191 | 25 | 1.5 | 2850*3800*2000 | 9828 | |
JJF type flotation machine |
JJF-2 | 2 | 1-3 | 7.5 | 443 | 25 | 1.5 | 1400*1400*1100 | 1670 |
JJF-4 | 4 | 2-4 | 11 | 305 | 25 | 1.5 | 1600*2150*1250 | 2350 | |
JJF-8 | 8 | 4-8 | 22 | 233 | 25 | 1.5 | 2200*2900*1400 | 4500 | |
JJF-10 | 10 | 5-10 | 22 | 233 | 25 | 1.5 | 2200*2900*1700 | 4820 | |
JJF-16 | 16 | 5-16 | 30 | 180 | 25 | 1.5 | 2850*3800*1700 | 8000 | |
JJF-20 | 20 | 5-20 | 37 | 180 | 25 | 1.5 | 2850*3800*2000 | 10500 |
